FILTROQUARZ 2C

The double chamber quartzite filter is used for the first water filtration from rivers, canals, dams and lakes. It makes sure that very small particles such as algae, organic materials and microorganisms that cause severe blockages in drip irrigation systems, are intercepted. All filters are hot galvanized steel made and they are equipped with polypropylene drainage diffusers  with 0.5 mm slits.Into the filters there are 4 inspection openings to introduce and remove easily the quartzite.

Description

CONSTRUCTION SPECIFICATIONS – quarzite filter; – hot-galvanized steel; – steel covers with central bolt  .

STANDARD EQUIPMENT – 0.5 mm slotted PP diffusers – pressure gauge; – exhaust valve; – safety valve; – threaded connections; – manual of use and maintenance; – quartzite NOT included.

CE RULES: – designed and constructed in accordance with the EU directive “Pressure Equipment Directive 97/23” and it is marked by individual identification labeling.

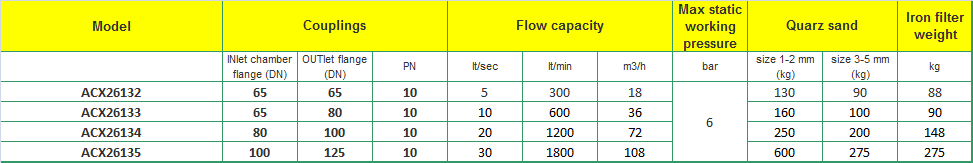

AVAILABLE SETTINGS:



More technical information available in the documents attached.
